品牌：
意大利MAZZONI
产品特点：
• 磨削加工活塞，行程平稳，密封性好
• 工业型曲轴设计，更好传递扭矩
• 工业加厚型陶瓷柱塞组件，运行稳定
• 合金材质连杆
• 锻造液力端，黄铜/镀镍/不锈钢等多样化选择
• 双垫片密封设计，高温密封可达85度（热水泵/不锈钢泵型）
• 高阻力圆锥滚子轴承
• 外观设计美观、实用、耐用性强
|
进水温度限制 MAX INPUT WATER TEMPERATURE |
|
进水压力限制 MINIMAL INPUT PRESSURE |
|
进水口 INLET |
|
出水口 OUTLET |
|
镀镍液力端 NICKEL PLATED MANIFOLD |
|
85°C 185° F |
3 BAR 43.51 PSI |
G 1/2” |
G 3/8” |
|||||
|
|
规格参数表：
|
TPM HIGH TEMPERATURE |
流量 FLOW RATE |
转速 ROUNDS |
压力 MAX PRESSURE |
机油容量 OIL CAPACITY |
净重 WEIGHT |
||||
|
Lt/min |
Gpm |
Rpm |
Bar |
Psi |
Lt |
Gal |
Kg |
Lbs |
|
|
50 Hz |
8.00 ≫15.00 |
2.24 ≫ 3.96 |
1450 |
150 |
2175.57 |
0.4 |
0.1 |
7.5 |
16.53 |
|
60 Hz |
10.20≫18.00 |
2.69 ≫ 4.75 |
1740 |
||||||
|
型号 Model |
转速/流量 lt/min - gpm |
压力 Pressure |
功率 / Power |
输出轴 Shaft Ø 24 |
|||||||
|
50Hz |
60Hz |
||||||||||
|
1450 rpm |
1740 rpm |
Bar |
Psi |
HP |
Kw |
HP |
Kw |
||||
|
TPM8150 R/L |
8.50 |
2,24 |
10.20 |
2,69 |
150.00 |
2175.57 |
3.31 |
2.47 |
3.97 |
2.96 |
Right/Left |
|
TPM10150 R/L |
10.00 |
2,64 |
12.00 |
3,17 |
150.00 |
2175.57 |
3.90 |
2.91 |
4.68 |
3.49 |
Right/Left |
|
TPM11150 R/L |
11.00 |
2,91 |
13.20 |
3,49 |
150.00 |
2175.57 |
4.29 |
3.20 |
5.14 |
3.83 |
Right/Left |
|
TPM12150 R/L |
12.00 |
3,17 |
14.40 |
3,8 |
150.00 |
2175.57 |
4.68 |
3.49 |
5.61 |
4.18 |
Right/Left |
|
TPM13150 R/L |
13.00 |
3,43 |
15.60 |
4,12 |
150.00 |
2175.57 |
5.06 |
3.77 |
6.08 |
4.53 |
Right/Left |
|
TPM14150 R/L |
14.00 |
3,70 |
16.80 |
4,44 |
150.00 |
2175.57 |
5.45 |
4.06 |
6.55 |
4.88 |
Right/Left |
|
TPM15150 R/L |
15.00 |
3,96 |
18.00 |
4,76 |
150.00 |
2175.57 |
5.84 |
4.35 |
7.01 |
5.22 |
Right/Left |
产品专用配件：
|
备件 / SPARE PARTS |
||||||||||
|
|
||||||||||
|
|
|
|
油封 |
|
|
水封 |
||||
|
ANELLI TENUTA OLIO ASTA KIT OIL SEAL PUMP MM PM |
GUARNIZIONE PISTONE KIT PLUNGER SEALS |
|||||||||
|
|
|
|
|
|
|
|||||
|
液力端 |
|
|
柱塞套件 |
|
|
单向阀套件 |
||||
|
TESTATA COMPLETA COMPLETE HEAD OF THE PUMP |
PISTONE Ø18 POMPA PM KIT CERAMIC PISTON |
VALVOLA COMPLETA COMPLETE VALVE |
||||||||
|
|
|
|
|
|
|
|||||
|
|
工具密封 |
|
|
十字头连杆 |
||||||
|
GUARNIZIONE PISTONE - PACCO COMPLETO KIT COMPLETE SEALS |
PREMONTATO BIELLA - ASTA PREASSEMBLED CONNECTING ROD |
|||||||||
PM系列高压泵：
|
PM |
|||||
|
|
|
转速 RPM |
流量 FLOW RATE |
压力限制 MAX PRESSURE |
进水温度限制 MAX INPUT WATER TEMPERATURE |
|
50 Hz |
1450 |
8.50 - 15.00 lt/min |
170 Bar 2465 Psi |
65°C 149° F |
|
|
2.24 - 3.96 gpm |
|||||
|
60 Hz |
1740 |
10.20 - 18.00 lt/min |
|||
|
2.69 - 4.75 gpm |
|||||
|
|
|||||
|
PM-CW |
镀镍歧管 / Nickel-plated manifold |
||||
|
|
|
转速 RPM |
流量 FLOW RATE |
压力限制 MAX PRESSURE |
进水温度限制 MAX INPUT WATER TEMPERATURE |
|
50 Hz |
1450 |
8.50 - 15.00 lt/min |
170 Bar 2465 Psi |
65°C 149° F |
|
|
2.24 - 3.96 gpm |
|||||
|
60 Hz |
1740 |
10.20 - 18.00 lt/min |
|||
|
2.69 - 4.75 gpm |
|||||
|
|
|||||
|
TPM |
镀镍歧管 / Nickel-plated manifold |
||||
|
|
|
转速 RPM |
流量 FLOW RATE |
压力限制 MAX PRESSURE |
进水温度限制 MAX INPUT WATER TEMPERATURE |
|
50 Hz |
1450 |
8.50 - 15.00 lt/min |
150 Bar 2175 Psi |
85°C 185° F |
|
|
2.24 - 3.96 gpm |
|||||
|
60 Hz |
1740 |
10.20 - 18.00 lt/min |
|||
|
2.69 - 4.75 gpm |
|||||

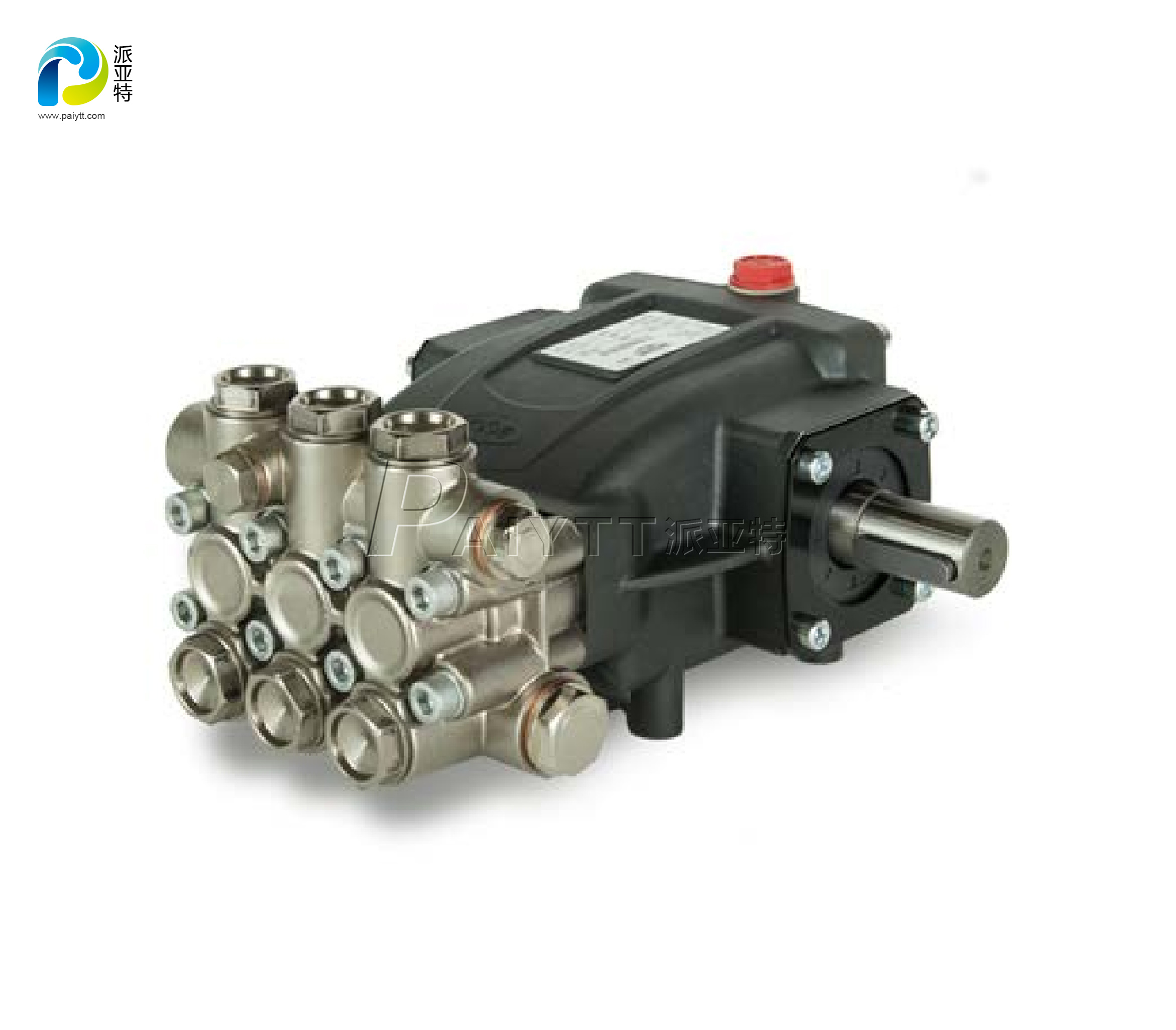

TPM 镀镍耐高温高压泵
